Heat Setting Stenter (Stenter Machine)

2017-07-04 17:30:46   Scource:Shandong Finestart Imp.& Exp. Co.,Ltd.    Click:
丨Working Procedure of Stenter Machine丨
open-width fabric entry → spreading → infrared centering→ padder→  weft straightener   → overfeed → uncurling → infrared detect→ pinning → stentering → air cooling → depinning → fabric exit→ plaiting/winding

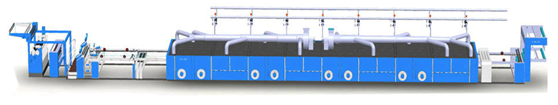

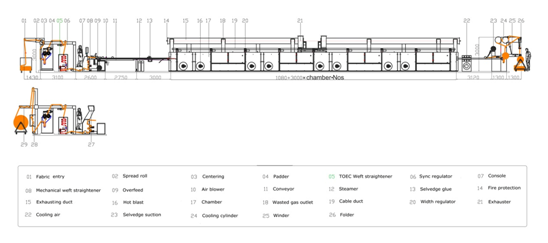

The main components of Stenter

The Heat Setting Stenter Machine is used for cotton/chemical fiber/mixed knitted woven fabric/ by openning width, drying and styling process.

 According to the width of the fabric, we can offer the following models:
 The machine is equipped with horizontal rollers, the diameter is from 360mm to 400mm based on the machine width of 3000mm or wider.
The specification of Stenter Machine
Origin China
Year of manufacture 2018
Main Matching Fabric  open width fabric (70~350g/m²) made of cotton, cotton/polyester,wool,synthtic fiber and
other blended fibers
Heat source natural gas/circulating conduction oil/steam
Stentering type hot air circulating
Holding type pin+clip
Chain type pitch 60mm,oil-free lubricated
Rail type carbon steel+polymer wearing strip
Working type horizontal return chain
Working width 1000-3600mm
Working speed 5-60m/min
Chamber Nos 2-12
Chamber width 3000mm
Insulating board thickness 150mm
Temperature of chamber 100~220ºC
Pinning & brush overfeed ratio -20%~40%
Temp.& Breadth adjustment type separately adjust on each chamber
Capacity of machine 61.5kw+22.75kw*chamber*Nos
Standard machine power supply 380V/3P/50HZ
Control power supply 220V/24V
Steam specification of steam box 3-6kg/cm²
Steam comsuption of steam box 100-150kg/h
Compressed air  0.35-0.6MPa
Total weight 14T+5.8T/chamber*Nos
